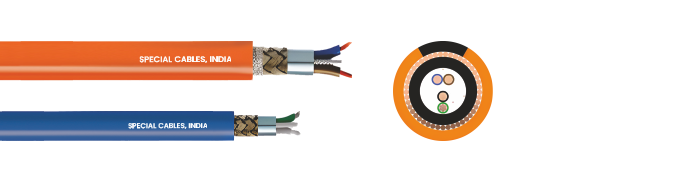

Fieldbus & Profibus Cables

APPLICATIONS

For Bi-directional communication protocol used for communication amongst field devices and control system.

TYPES & SIZES

Single and multiple pairs with sizes

20 AWG / 18 AWG / 16 AWG / 14 AWG for voltage grade 300/600 kV

Conductor

Bare / Tinned copper (up to 150°C), Silver plated copper (up to 200°C),

Nickel plated copper (up to 260°C)

Insulation

Polyethylene, XLPE, PFA, FEP (higher temperatures)

Screening

Individual & Overall or Overall screening – Aluminium Mylar Tape with Tinned Copper Drain Wire, Copper Tape or Braiding

Inner & Outer Sheath

PVC, LSZH, PA

Armour

Galvanized Steel Round Wire / Flat Strip / Steel Tape or GI / Tinned Copper Braid

Specification

Foundation Fieldbus FF-844H1, EN50288-7, BS: 5308 (Pt-1), IEC 60332, JIS

KEY FEATURES

  1. Low capacitance during long runs
  2. Excellent electrical transmission performance
  3. Low signal attenuation
